RIG EQUIPMENT

Crown Block

The Crown Blocks conform to API Spec 4F, 8A/8C. The sheaves grooves are hardened forimproved service life of the sheaves. All sheaveshave double-row conical roller bearings andeach bearing has individual lubricating channel.

Brief Parameters

Model TC135 TC170 TC225 TC315 TC450H TC585H TC675H
Max Hook Load kN 1350 1700 2250 3150 4550 5850 6750
O.D of Sheaves min(in) 915(36) 1005(40) 1120(44) 1270(50) 1524(60) 1524(60) 1524(60)
Number of sheaves 5 6 6 7 7 8 8
Dia of Wireline mm(in) 29(1.1/8) 29(1.1/8) 32(1.1/4) 35(1.3/8) 38(1.1/2) 42(1.5/8) 32(1.3/4)

Travelling Hook Block Assembly

The hook block assembly conforms to API Spec. 8A /8C. The shafts of travelling block are forged with alloy steel and provided with a lubrication hole of bearing for one sheave. The sheaves grooves are hardened for improved service life of the sheaves. All sheaves have double-row conical roller bearings and each bearing has individual lubricating channel.

Brief Parameters

Model YG135 YG170 YG315 YG450H
Max Hook Load kN 1350 1700 3150 4550
O.D of Sheaves min(in) 915(36) 915(36) 1270(50) 1524(60)
Number of sheaves 4 5 6 6
Dia of Wireline mm(in) 26(1)/29(1(1/8)) 29(1(1/8))/32(1(1/4)) 32(1(1/4))/35(1(3/8)) 35(1(3/8))/38(1(1/2))

Swivel

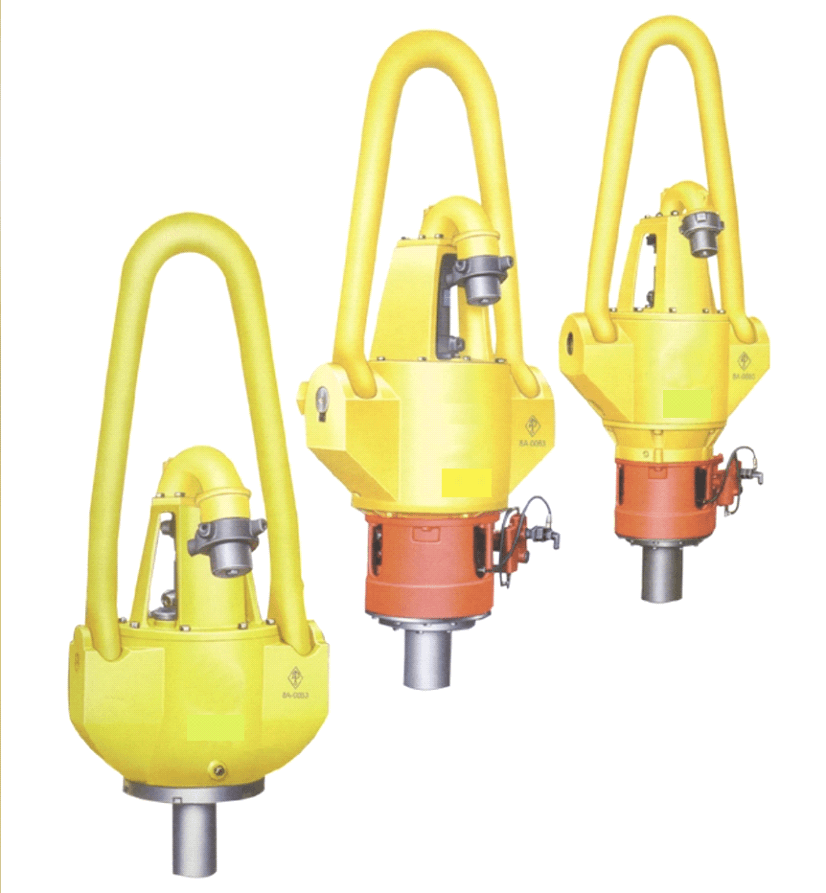

The Swivels conforms to API Spec. 8A /8C. The swivels with standard bails and double pin alloy steel sub. The wash pipe and the packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.

Brief Parameters

Model SL135 SL225 SL450 SL450H SL675
Max Static Load Rating kN 1350 2250 4500 50
r/min Max Speed 300 300 300 300
Max Working Pressure MPa(psi) 35(5000) 35(5000) 35(5000) 52(7500) 52(7500)
Clearance between bail and gooseneck mm(in) 495(19(1/2)) 540(21(1/4)) 549(21(5/8)) 600(23(3/5)) 640(25(1/5))
Dia of stem mm(in) 64(2(1/2)) 75(3) 75(3) 75(3) 101.6(4)
Coupling Thread
API To Stem API To Kelly
4(1/2) REG LH 6(5/8) REG LH
4(1/2) REG LH 6(5/8) REG LH
4(1/2) REG LH 6(5/8) REG LH
4(1/2) REG LH 6(5/8) REG LH
4(1/2) REG LH 6(5/8) REG LH
The above-mention swivels have spinners (dual-perpose) and no spinners. H in model means high pressure.

Rotary Tables

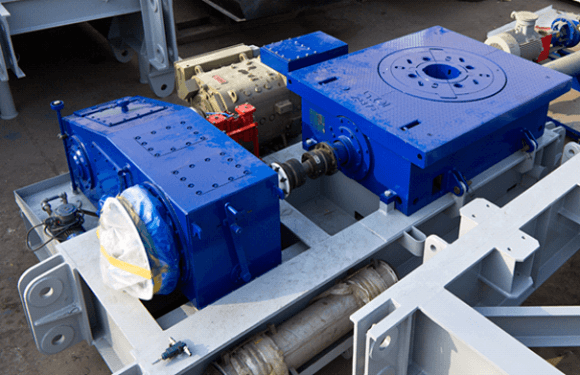

The rotary tables conform to API Spec. 7K. The pinion and the gear are made of alloy steel. The split type master bushing is made from a steel casting. Two transmission types (Kelly and pin) are available. Pin transmission type is suitable for API standard square Kelly or hexagonal Kelly roller bushing.Long and short slips are applicable. With API casing bushings and special sling.

Brief Parameters

Model ZP175 ZP205 ZP275 ZP375 ZP375H ZP375D ZP495
Dia of Opening mm(in) 444(17(1/2)) 520.7(20(1/2)) 698.5(27(1/2)) 952.5(37(1/2)) 1257.3(49(1/2))
Table Axix to center inner row sprocket teeth mm(in) 1118(1.1/8) 1353(53(1/4)) 1353(53(1/4)) 1353(53(1/4)) 1651(65)
Max Static Load kN 2250 3150 4500 5850 7250 5850 9000
Max. Working Torque Nm 13729 22555 27459 32362 45000 32362 64000
Max Speed r/min 300 350 250 300 300
Note: D in model means low temperature and H in model means high temperature.

Drawworks

Mechanical Driven Drawworks

  • Bearings are rolling ones and shafts are made of alloy steel. Chains with high accuracy and high strength are pressure lubricated.
  • On the drum there is a spiral groove. The low-speed & high-speed ends of drum shaft are equipped with a ventilating air clutch.
  • The contours of the sprocket teeth are intermediate frequency quenched.
  • Drawworks transmission: 4(F) and 2 (R) or 6 (F) and 2 (R). Gear-shifting mode: pneumatic tube clutch or cylinder shifting.
  • Either band brake or disc brake is regarded as main brake and either eddy current brake or Eaton brake(water or air cooled) is regarded as auxiliary brake.
  • Equipped with auto feed driller or emergency motor.

Brief Parameters

Model JC40 JC50 JC70
Normal depth range m
2500-4000 2000-3200
3500-5000 2800-4500
4500-7000 4000-6000
4500-7000 4000-6000
Rated Input Power kW(hp) 735(1000) 1100(1500) 1470(2000)
Max Pull Of Fast Line kN 275 340 485
Dia Of Wireline mm(in) 32(1(1/4)) 35(1(3/8)) 38(1(1/2))

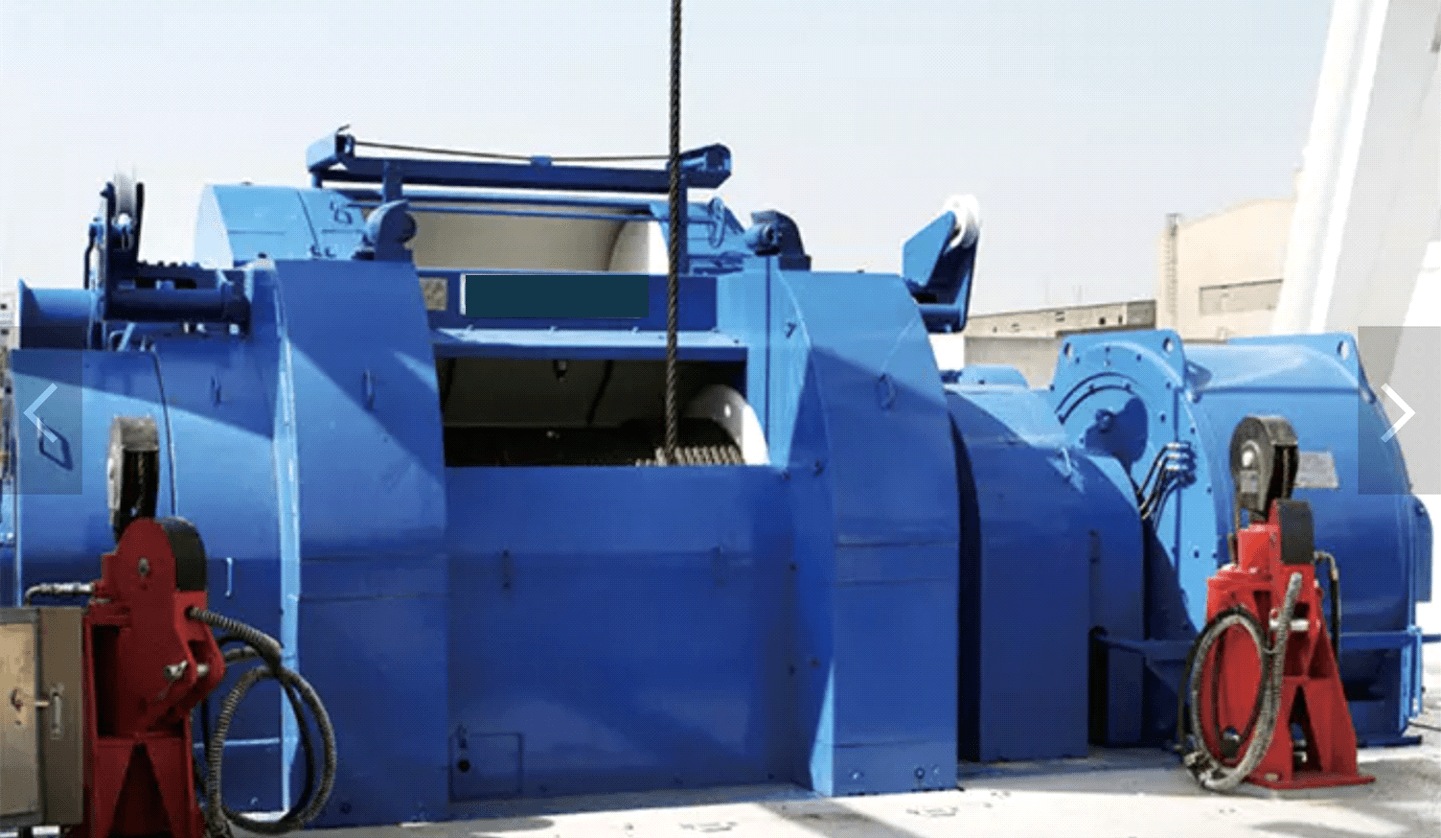

DC Motor Driven Drawworks

  • Bearings are roller ones and shafts are made of alloy steel.
  • On the drum there is a spiral groove. The low-speed & high-speed ends of drum shaft are equipped with a ventilating air clutch.
  • The hydraulic disc brake is regarded as main brake. The disc brake is water or air cooled.
  • Either eddy current brake or Eaton break (air & water cooled) is considered as an auxiliary brake.
  • Drawworks transmission: 4(F) and 4 (R).
  • Gear-shifting mode: cylinder
  • Chain drive structure.
  • Chains are pressure lubricated and bearings are greased. Integral or split construction.
  • An auto feed driller with motor is available.

Brief Parameters

Model JC40D JC50D JC70D JC80D JC90D
Normal depth range m
2500-4000 2000-3200
3500-5000 2800-4500
4500-7000 4000-6000
- 5000-8000
- 6000-9000
2500-4000 2000-3200
Rated Input Power kW(hp) 735(1000) 1100(1500) 1470(2000) 2210(3000) 2210(3000)
Number * Rated Power Of moters kW 2*580 2*800 2*800 2*800 2*800
Rated Speed Of Motor r/min 1000 970 970 970 970
Max Pull Of Fast Line kN 275 340 485 553 640
Dia Of Wireline mm(in) 32(1(1/4)) 35(1(3/8)) 38(1(1/2)) 42(1(5/8)) 45(1(3/4))

AC-VFD Motor Driven Drawworks

  • The drawworks is of single-shaft type and the drum is grooved.
  • Two-stage gear reducer. Gear-shifting: manual or auto
  • The gear is pressure lubricated.
  • Bearings are roller ones and shafts are made of alloy steel. The hydraulic disc brake is considered as main brake. The disc brake is water or air cooled.
  • The motor dynamic braking is considered as auxiliary brake. Auto feed driller is available.

Brief Parameters

Model JC40DB JC50DB JC70DB JC90DB
Normal | depth range m
2500-4000 2000-3200
3500-5000 2800-4500
4500-7000 4000-6000
6000-9000 5000-8000
6000-9000 5000-8000
Rated Input Power kW(hp) 735(1000) 1100(1500) 1470(2000) 2210(3000)
Number * Rated Power Of moters kW 1*720 2*720/2*600 2*800 2*1100
Rated Speed Of Motor r/min 600 600(661) 741 661
Max Pull Of Fast Line kN 275 340 485 640
Dia Of Wireline mm(in) 32(1(1/4)) 35(1(3/8)) 38(1(1/2)) 45(1(3/4))

Mud Pumps

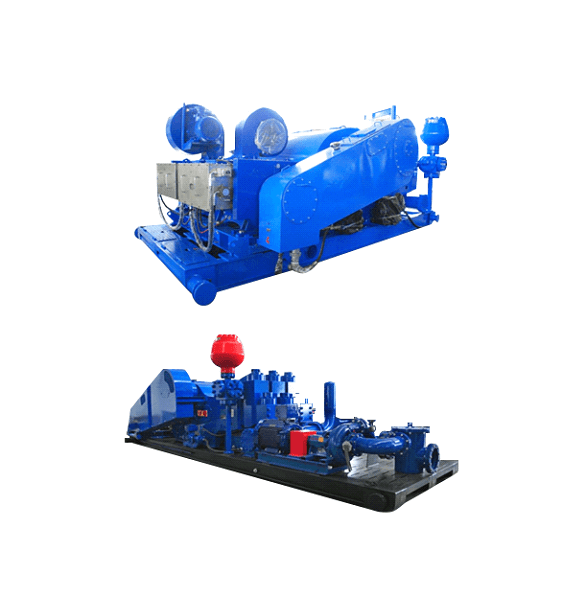

Mud pumps with a complete range includes F-series, P-series and 3NB series mud pumps.

F-Series Mud Pumps

The F series mud pump has a compact structure, which is durable and can be employed in the demanding onshore/offshore drilling operation. It has various models with the input power ranging from 500HP(373kW)to 1600HP(1176 kW).

Model F-500 F-800 F-1000 F-1300 F-1600/F-1600L F-1600H
Max Input Power kW(hp) 500(373) 800(597) 1000(735) 1300(956) 1600(1176) 1600(1176)
Rated Pump Speed , spm 165 150 140 120 120 120
Max Fluid Cylinder Liner Bore mm(in) 6-3/4"(170) 6-3/4"(170) 6-3/4"(170) 7"(177.8) 7"(177.8) 7"(177.8)
Stroke 7-1/2"(191) 9"(229) 10"(254) 12"(308.4) 12"(308.4) 12"(308.4)
Hydrostastic Test Pressure Of Standerd Fluid Cylinders, psi 7500(527) 7500(527) 7500(527) 7500(527) 7500(527) 11250(790)
Note: L in model indecates split type cylinder and H high temperature.

P-Series Mud Pumps

P series mud pumps which are compact-sized with reliable performance can be used for onshore/offshore drilling equipment with higher quality requirements. There are 5 types of P series mud pumps for selection, whose input power ranges from 800HP (597kW) to 2200HP (1640 kW).
Model P-800 P-1000 P-1300 P-1600 P-2200
Max Input Horsepower kW(hp) 800(597) 1000(746) 1300(969) 1600(1193) 2200(1640)
Rated Pump Speed , spm 160 150 140 120 105
Max Fluid Cylinder Liner Bore mm(in) 61/4(158.8) 63/4(171.5) 63/4(171.5) 71/4(184.2) 9(228.6)
Stroke 81/2(215.9) 91/4(235) 10(254) 12(308.4) 14(355.6)
Hydrostastic Test Pressure Of Standerd Fluid Cylinders, psi 10,000(703) 10,000(703) 10,000(703) 10,000(703) 11250(791)

3NB-Series Mud Pumps

Power end: The shell is of welding structure made of steel plates, and internal stress is eliminated after welding. The power end drive gear is a transmission gear, which runs smoothly with high efficiency and a long service time. Crankshaft is a hollow one-piece casting. Power end is splash lubrication.

Fluid end: the suction valve and the discharge valve conform to ASA and API specifications. It adopts clamp connection between the piston rod and the intermediate rod. The valve seat bores have a bottom shoulders to prevent the sinking of the valve seat. The pistons and cylinder sleeves are spray lubricated and cooled, which allow an extended service
life.

Model 3NB500C 3NB1000C 3NB1300C 3NB1600C
Input power kW(PS) 368(500) 735(1000) 956(1300) 1176(1600)
Stroke Per Minutes pm 95 110 120 120
Piston Stroke mm 254 305 305 305
Gear Ratio 3.82 3.833 3.81 3.81
Speed Of Driving Shaft r/min 363 423 457 457
Max Working Pressure MPa 28.9 34.5 34.5 34.5

Mud System and Solid Control

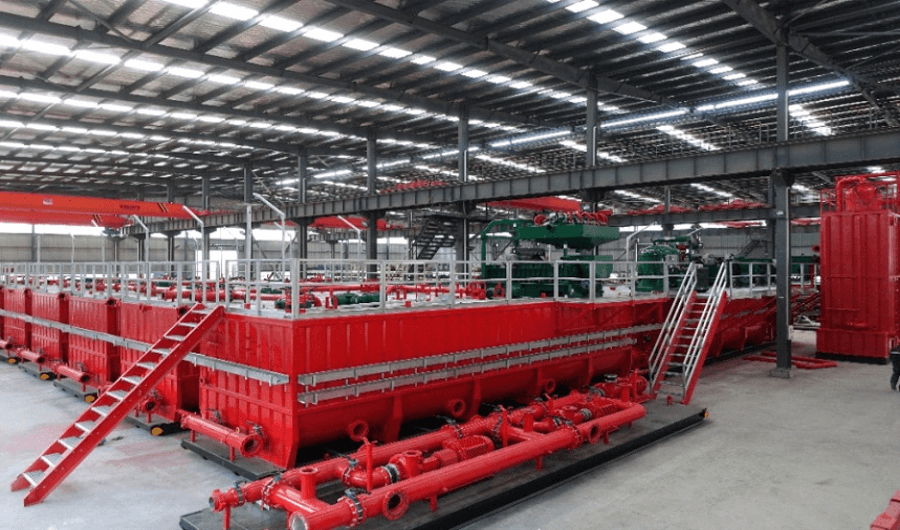

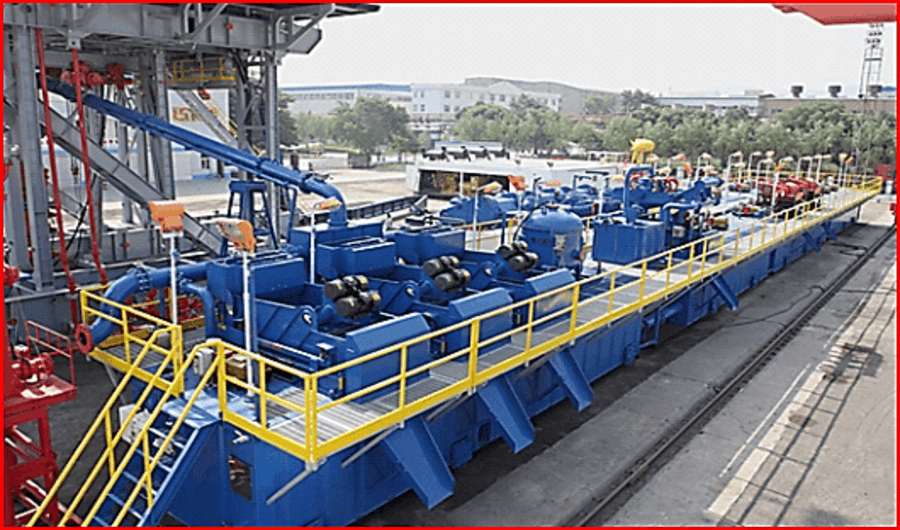

Mud Tank System complete with solid control equipment including Shale Shakers, Mud Cleaners, Desander, Desilter, Degasser, Centrifuges, Agitators, Centrifugal Pumps, etc.

Mechanized Equipment

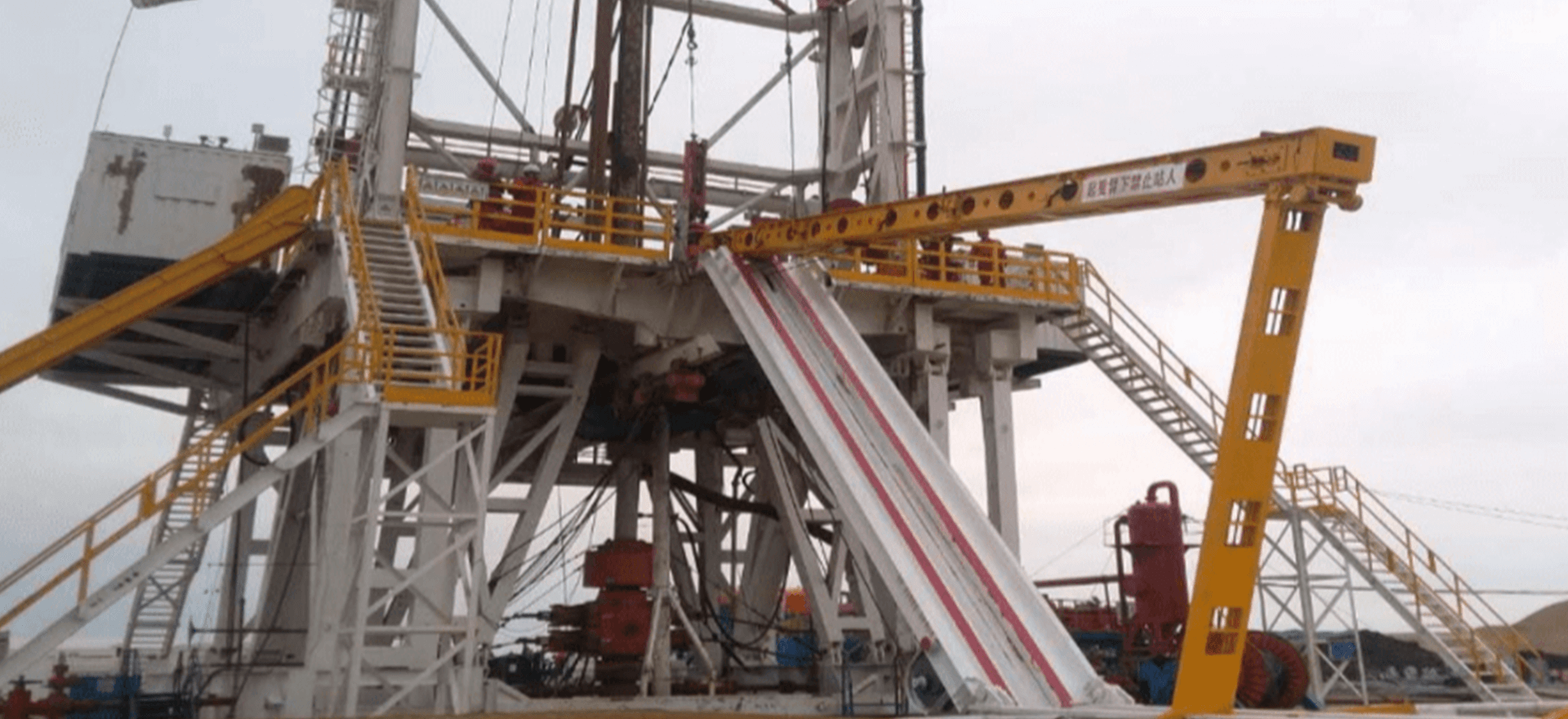

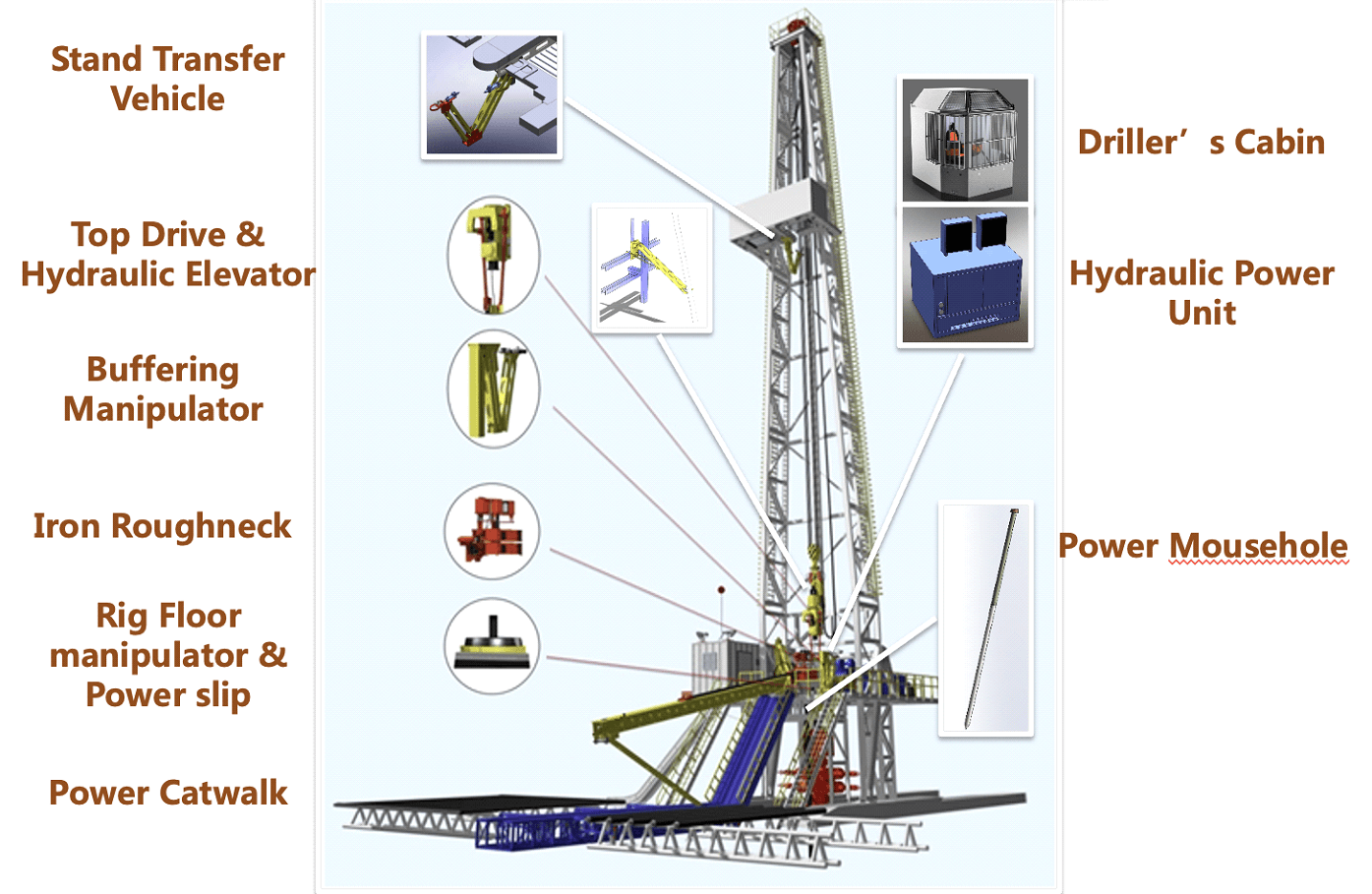

The Rig can be equipment with the complete range of mechanized equipment with Zone-Management System for fast and safe operations.
